PA12 Mineral-Filled (PA620-MF)

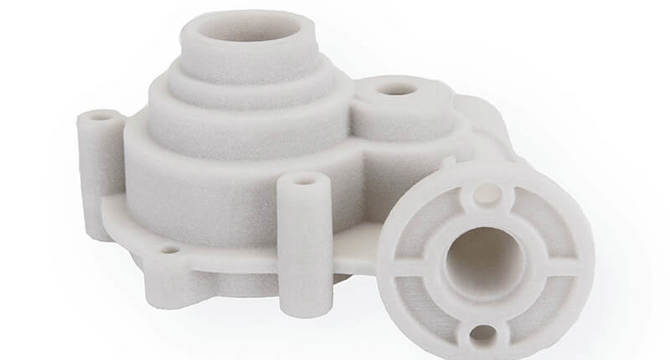

PA12 Mineral-Filled (PA620-MF) is a nylon material available for SLS 3D Printing.
Product Description
This 25% mineral-filled nylon offers the highest stiffness among Protolabs’ selective laser sintering materials. It’s an excellent choice when stiffness and high temperature resistance are the most important requirements.
Applications
The material’s stiffness and temperature resistance makes it suited for components like armatures and mounting plates.
Tolerances
For well-designed parts, tolerances of ±0.010 in. plus ±0.0015 in./in. for each additional inch can typically be achieved.
Note that tolerances may change depending on part geometry.
Key Product Benefits
- Excellent strength to weight performance
- High temperature resistance
- Parts can be oriented to achieve maximum strength in X-build direction
Related Materials
- PA11 Black (PA850)
- PA12 40% Glass-Filled (PA614-GS)
- PA12 White (PA650)
PA12 Mineral-Filled (PA620-MF) Properties
All of the figures contained on this data sheet are approximate and dependent on a number of factors, including but not limited to, machine and process parameters.
The information provided is therefore not binding and not deemed to be certified
| Property | Test Method | Value |
|---|---|---|
| Color | - | Light Gray |
| Sintered Density | ASTM D792 | 1.20 g/cm³ |
| E-Module (x-y plane) | ASTM D638, test speed 10mm/min | 3,100 ± 400 MPa |
| E-Module (z plane) | ASTM D638, test speed 10mm/min | 2,500 ± 200 MPa |
| Tensile strength (x-y plane) | ASTM D638, test speed 10mm/min | 38 ± 5 MPa |
| Tensile strength (z plane) | ASTM D638, test speed 10mm/min | 32 ± 7 MPa |
| Elongation at break (x-y plane) | ASTM D638, test speed 10mm/min | 3 ± 1% |
| Elongation at break (z plane) | ASTM D638, test speed 10mm/min | 2 ± 1.5% |
| Heat deflection temperature @ 0.46 MPa* | ASTM D648 | 184 °C (363 °F) |
| Heat deflection temperature @ 1.82 MPa* | ASTM D648 | 179 °C (354 °F) |
*From supplier data sheet
