Liquid silicone rubber injection moulded part

Liquid Silicone Rubber Injection Moulding

Get custom silicone rubber parts within days.

shield_locked All Uploads are Secure and Confidential




certified Certifications

ISO 9001:2015 | ISO 14001:2018 | Critical to Quality Inspections


Our liquid silicone rubber (LSR) moulding process produces custom prototypes and end-use production parts in 15 days or less. We use aluminium moulds that offer cost-efficient tooling and accelerated manufacturing cycles. What's more, we stock various grades and durometers of LSR materials.

Common applications for silicone rubber moulding:

  • low-volume production
  • bridge tooling
  • pilot runs
  • functional prototyping

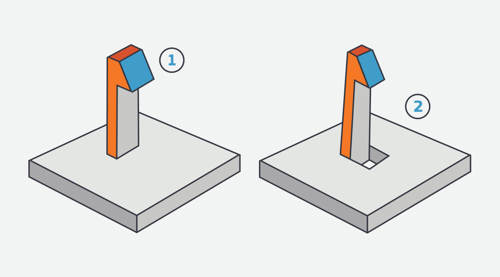

Design Guidelines: Liquid Silicone Rubber


Materials available for silicone rubber injection moulded parts

Liquid Silicone Rubber Materials

  • Standard Silicone (30, 50, 60, and 70 durometers)
  • Dow Corning MS-1002 Clear
  • Dow Corning MS-4002 Optical Clear



Learn More


Surface Finish Options

Finish Description
PM-F0 non-cosmetic, default

PM-F1

low-cosmetic, most toolmarks removed

SPI-C1

600 grit stone, 10-12 Ra
PM-T1 SPI-C1 + light bead blast
PM-T2 SPI-C1 + medium bead blast
SPI-A2 grade #2 diamond buff, 1-2 Ra



Learn More


Silicone rubber surface finish for LSR part manufacturing

Inspection of LSR parts for medical sector

Quality Inspections and Finishing Options

Depending on your application's requirements, you can choose from the following when requesting a quote for your silicone rubber parts.

Quality Inspections available for on-demand manufacturing orders

  • Designing for Manufacturability (DFM) Feedback
  • Scientific Moulding Process Development Report
  • In-process CMM inspection and machine monitoring
  • First article inspection (FAI) and process capability report with GD&T



Learn More


Silicone rubber injection moulding operator

Learn More About Liquid Silicone Rubber Moulding

Our guide to liquid silicone rubber (LSR) discusses the injection-moulding process of the elastic material and offers guidelines to improve moulded LSR parts. While there are some shared similarities to thermoplastic injection moulding, LSR is a thermoset material with a unique set of design characteristics.


About Liquid Silicone Rubber



What is liquid silicone rubber moulding?

expand_less expand_more

Liquid silicone rubber moulding is a thermoset process that mixes a two-component compound together, which is then heat cured in the mould with a platinum catalyst to produce a final LSR part.

Why choose liquid silicone rubber moulding for your project?

expand_less expand_more

Liquid Silicone Rubber has excellent thermal, electrical, and chemical resistance properties, although it can be attacked by certain solvents such as gasoline or mineral spirits, which is why it can be used in high-temperature automotive applications but not for fuel lines. And it has low compression set—low permanent deformation when a force is applied and removed—making it ideal for elastomers. This allows for faster and most cost-effective tooling when compared to traditional steel moulds. We offer a number of additional secondary services to support your project.

How does liquid silicone rubber moulding work?

expand_less expand_more

how liquid silicone rubber moulding works

From left to right, the components of a silicone rubber injection moulding press include: ram (1), screw (2), silicone rubber part A (3), silicone rubber part B (4) mixer (5), barrel (6), chilled silicone rubber (7), nozzle (8), heated mould (9). and thermoset part (10)

Due to the flexible nature of LSR, parts are manually removed from the mould, and thus, ejector pins are not built into the mould design. Like a standard aluminium tool, an LSR moulding tool is fabricated using CNC machining to create a high-temperature tool built to withstand the LSR moulding process. After milling, the tool is polished by hand to customer specifications, which allows six standard surface finish options.

The finished tool is loaded into an advanced LSR-specific injection moulding press that is precision geared for accurate control of shot size to produce the most consistent LSR parts.

Since LSR is a thermosetting polymer, its moulded state is permanent—once the rubber mould set, it can’t be melted again like a thermoplastic. When the run is complete, parts (or the initial sample run) are boxed and shipped shortly thereafter.

For more information on liquid silicone rubber (LSR) moulding process to help you improve your LSR moulded parts, read our LSR white paper.




Watch: Injection Moulding Process

Rapid injection moulding works best for on-demand production, bridge tooling, pilot runs, and functional prototyping. Our affordable aluminium moulds and quick turnaround times help reduce design risks and limit overall production costs.




Watch: From Art to Part

Watch an initial concept for a product move from sketch to 3D CAD model to final part. Once a design is uploaded at Proto Labs, we provide an interactive quote with real-time pricing information and manufacturability feedback within hours. Product designers and engineers can choose from various injection moulding, CNC machining and 3D printing manufacturing processes — all built to produce quick-turn parts in as fast as 1 day.


Mouldability analysis with hours of quote request

Free mouldability analysis within hours
