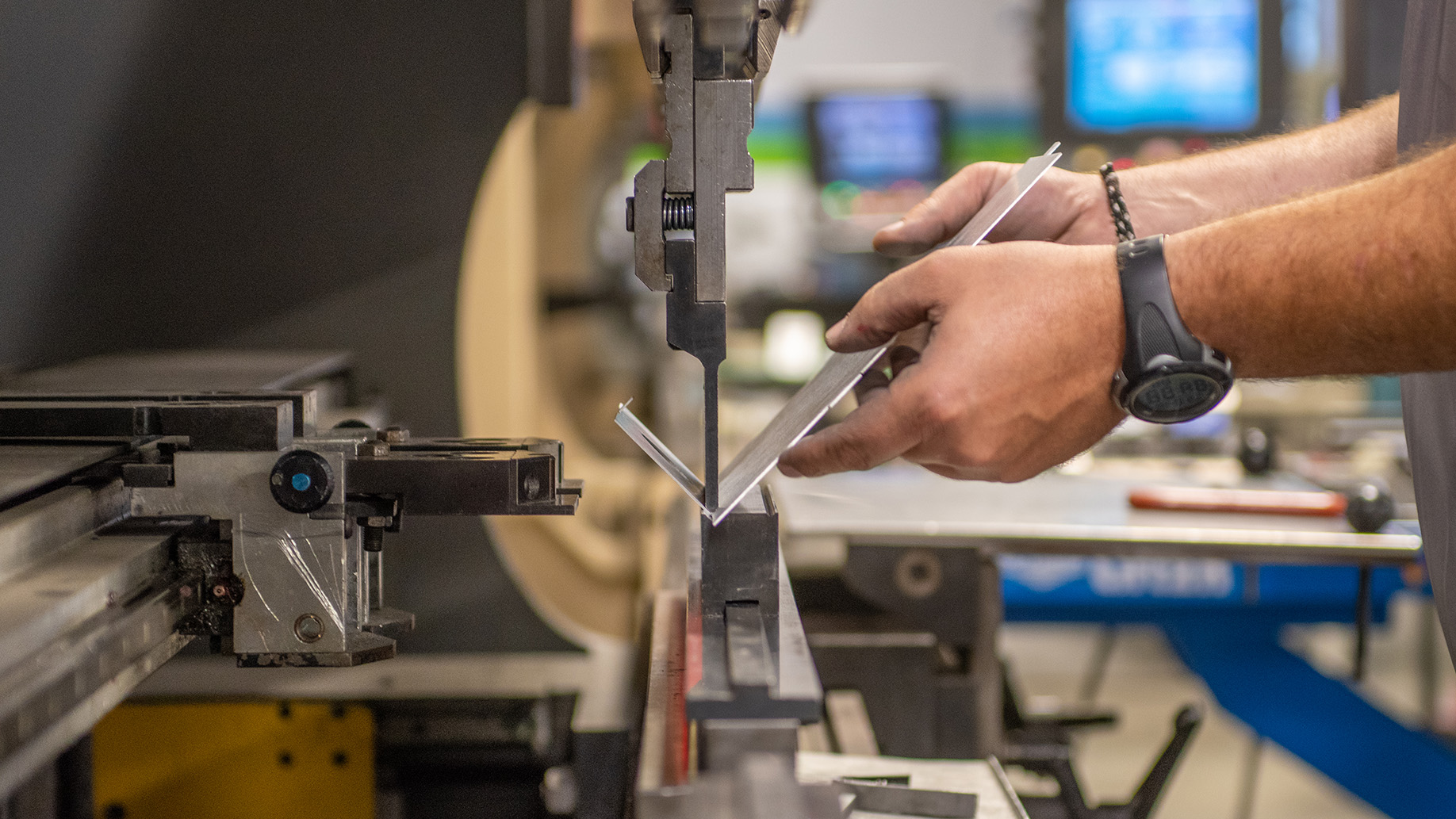

Understanding Yield Strength
Yield strength marks the point where a material bends but doesn't break, which is a critical detail for safe, reliable design.
Understanding yield strength is a real strength, giving you an edge in manufacturing. Imagine bending a paperclip. At first it springs back, then suddenly it stays bent. That transition point is yield strength. For engineers designing everything from aircraft wings to medical devices, it's one of the most critical material properties to understand.
What Is Yield Strength
Yield strength is the stress threshold where materials shift from elastic behaviour (reversible deformation) to plastic behaviour (permanent deformation). It's measured in megapascals (MPa) and defines how much load a material can bear while still returning to its original shape. Engineers use yield strength data to check that parts can carry their loads without bending or breaking.
Key Relationships in Yield Strength
There are a few fundamental relationships that connect force, deformation, and stiffness. These form the backbone of how engineers define and calculate yield strength.
Stress (σ): Think of stress as how much force per area a material experiences. The formula is σ = F/A, where F is the applied force and A is the cross-sectional area. Push harder on a smaller area, and the stress goes up.
Strain (ε): Strain measures how much something stretches or compresses compared to its original size. Formula: ε = ΔL/L₀, where ΔL is the change in length and L₀ is the starting length. It basically indicates how much the material has stretched.
Young’s modulus (E): This tells you how stiff a material is. It’s the ratio of stress to strain (E = σ/ε) in the elastic zone. A high E means the material barely deforms under load, like steel compared to rubber.
Hooke’s law: In the elastic region, stress and strain rise together in a straight-line relationship: σ = E × ε. This rule holds until you hit the yield point, after which the curve bends, and the material starts to deform permanently.
Stress–strain curve: This graph ties all the relationships together, plotting stress (vertical) against strain (horizontal) as a material is loaded. At first, the line is straight and this represents the characteristics of a spring, where the material bounces back when you let go. When the line starts to bend, that’s the yield point. Beyond that, the material takes on permanent shape changes, like a paperclip that stays bent. That bend in the curve is what defines yield strength.
A stiff material (high E) resists deformation, but that doesn’t always mean it has high yield strength. The best engineering materials balance stiffness and strength depending on what the part needs to do.
Why Yield Strength Matters in Manufacturing
Yield strength is a high-stakes design limit for engineers. It's the boundary that determines whether your parts will perform reliably or deform permanently under expected loads.
- Building in safety: In practice, engineers don’t push materials anywhere near their yield strength. Instead, they design for about 25–50% of that limit, leaving a safety margin for unexpected loads and real-world variation.
- Avoiding failure in big structures: In bridges or aeroplane wings, once a part yields, it stays bent. That creates immediate danger. Yield strength helps engineers predict when this shift occurs.
- Picking the right material: Different applications need different yield strengths. Aerospace often uses titanium alloys (800–1200 MPa), while ABS plastic (~45 MPa) works well for electronics housings.
- Balancing cost and performance: Stronger materials allow lighter designs but usually cost more and are harder to process. Yield strength data helps balance performance, weight, and budget.
- Protecting against fatigue: Loads repeated near the yield limit slowly weaken materials. Designing well below yield strength extends service life and prevents long-term fatigue damage.
Understanding material properties like yield strength is fundamental to effective material selection, helping engineers balance performance, cost, and manufacturability.
Techniques for Evaluating Yield Strength
Accurately measuring yield strength comes down to using the right testing methods, which change depending on the material and the design needs. Here are the main ones engineers rely on:
- Tensile testing (0.2% offset method): This is the go-to for metals. If there isn’t a clear yield point on the stress–strain curve, engineers draw a line offset at 0.2% strain to define yield strength. Tensile testing for 3D printing materials shows how additive manufacturing adds extra wrinkles, since printed parts can behave differently in different directions.
- Hardness correlation: Hardness tests are quick and practical. They’re often used in production to estimate yield strength for quality checks or incoming material inspection. Material hardness testing dives into how different hardness scales can connect back to strength values.
- Proof stress testing: For polymers and composites, which don’t always show a clear yield point, engineers instead record the stress at a small stretch (like 0.1% or 0.2%) and use that as the yield strength. This provides a simple way to compare and design with materials that bend or stretch more slowly.
Yield Strength by Manufacturing Technology
How a part is made has a big impact on its yield strength. The process can change the material’s internal structure and even leave behind built‑in stresses that affect how it behaves under load. That’s why it’s important to think about manufacturing methods alongside material choice.
CNC machining
Cutting can harden the surface of metals slightly, which can boost strength in some areas. Aluminium alloys (40–400 MPa) are easy to machine but can show changes in strength near sharp corners. Steels (250+ MPa) are more consistent but often hold residual stresses that need to be managed. Material choice considerations walk through how to balance machinability with strength.
Injection moulding
With plastics, processing is just as important as the resin itself. ABS can reach ~40–50 MPa when moulded under the right conditions, while polypropylene is a bit lower at ~30–35 MPa but brings good chemical resistance. Scientific moulding principles show how controlling temperature, pressure, and cooling leads to more consistent results.
3D printing
Printed parts behave differently depending on how the layers are built. PA12 nylon can deliver ~45 MPa, while DMLS aluminium alloys (AlSi10Mg) can reach ~230 MPa, similar to wrought aluminium. Orientation, layer thickness, and post‑processing all make a big difference. The choice of material for additive processes also plays a major role in yield strength, as covered in Protolabs’ 3D printing material guide.
Comparing Yield Strength Across Materials
Material choice sets the boundaries of what a design can handle. Understanding yield strength characteristics helps engineers make informed trade-offs and achieve the optimal performance for their parts.
Metals: Known for the highest yield strengths, metals are the go-to for structural applications. They provide reliability under heavy loads but add weight and may increase cost. Engineers often consider how to balance strength-to-weight ratios when selecting between steel, aluminium, or titanium.
Plastics: Much lower yield strengths than metals, but they offer design freedom, low weight, and ease of processing. Plastics work well for housings, enclosures, and low-load parts where geometry and cost efficiency matter more than raw strength.
Elastomers: Extremely low yield strengths compared to metals and plastics, but their value lies in elasticity. They return to shape after stretching, making them indispensable for seals, gaskets, and vibration-damping parts.
Composites: Strong in specific directions and lightweight overall, composites provide excellent strength-to-weight ratios. Their performance depends heavily on fibre orientation and processing, which means careful design is key. Carbon DLS materials provide engineered resin properties for applications requiring composite-like performance.
Material Properties Comparison
|
Material |
Yield Strength (MPa) |
Density (g/cm³) |
Strength-to-Weight Ratio |
Manufacturing Process |
|
Aluminium 6061-T6 |
276 |
2.7 |
102 |
CNC machining |
|
Steel 1045 |
310 |
7.8 |
40 |
CNC machining |
|
Titanium Ti-6Al-4V |
880 |
4.4 |
200 |
CNC machining / 3D printing |
|
ABS |
45 |
1 |
45 |
Injection moulding |
|
Polypropylene |
32 |
0.9 |
36 |
Injection moulding |
|
PEEK |
90 |
1.3 |
69 |
Injection moulding |
|
Liquid Silicone Rubber (LSR 60A) |
5 |
1.1 |
5 |
Injection moulding |
|
TPU (Thermoplastic Polyurethane) |
12 |
1.2 |
10 |
Injection moulding |
|
TPE (Thermoplastic Elastomer) |
8 |
1 |
8 |
Injection moulding |
|
PA12 Nylon (SLS) |
45 |
1 |
45 |
3D printing |
|
Aluminium AlSi10Mg (DMLS) |
230 |
2.7 |
85 |
3D printing |
|
Carbon EPX 82 |
84 |
1.2 |
70 |
3D printing (Carbon DLS) |
Values are typical but actual results depend on processing conditions, heat treatment, and testing standards.
Factors Affecting Yield Strength
Yield strength isn't constant. It changes based on environmental conditions, processing history, and loading characteristics.
- Temperature: Heat changes material strength. Steels can lose about 20% of their strength around 200°C. Plastics may soften quickly once they pass their glass transition temperature. Some materials also become brittle in the cold, even if their strength values look high on paper.
- Strain rate: The speed of loading affects behaviour. A quick impact can make some materials seem stronger, because they temporarily resist deformation under fast loading. However, this apparent strength can be misleading, since the material may not absorb the energy and can instead crack or shatter, leading to sudden failure. This is a key factor in applications like crash safety parts or protective gear.
- Composition and heat treatment: Adjusting chemistry, such as adding carbon to steel, can significantly change yield strength. Heat treatments can increase toughness or reduce hardness depending on the process and design requirements.
- Manufacturing effects: Manufacturing processes often leave a mark. Cold working, machining, and forming can trap hidden stresses inside the material and change how its internal structure is arranged. Depending on geometry and method, this can either improve or reduce performance.
Design Considerations Based on Yield Strength
Translating yield strength data into reliable design decisions requires understanding safety factors, stress concentrations, and environmental effects.
Safety factors
Engineers apply factors of 1.5–4× depending on how critical the application is. This means a part is designed to carry loads several times higher than expected, building in a margin of safety for unknowns in material quality, load variation, or service conditions. Aerospace structures usually need higher factors (3–4×) because failure has serious consequences, while consumer products may use lower factors (1.5–2×) to keep costs down.
Stress concentrations
Stresses around certain features—like holes, notches, or sharp corners—can be 3 to 5 times higher than the average stress in the rest of the material. Even if the overall load looks safe, these hot spots can push the part past yield and cause cracks or permanent bends. Smoother transitions and fillets spread stress out and reduce the risk.
Standards compliance
Industry standards set minimum yield strengths and test methods. For example, ASTM A36 for structural steel (250 MPa minimum), ISO 898-1 for bolts, ASTM D638 for plastics, and AS9100 for aerospace quality.
Environmental effects
Real-world conditions like heat, humidity, UV, and chemicals can lower effective yield strength by 20–50%. Exposure to the elements can slowly wear down polymers, corrode metals, or embrittle composites. Designers need to account for this and consider protective coatings, material choice, or environmental testing.
Manufacturing tolerances
Actual strength depends on how the part is made. Heat treatment, surface finish, and dimensional accuracy can all shift performance compared to the datasheet. When designing for manufacturing, it’s important to allow for these variations and build in safety margins so the part performs as intended.
Industries Where Yield Strength Is Critical
Different industries deal with very different loads and risks, so yield strength plays a different role depending on the application. Here are a few industries that require extremely precise yield strength.
- Aerospace: Here, every kilogram matters. Aircraft and spacecraft need materials with the highest strength-to-weight ratios. That’s why titanium alloys (like Ti-6Al-4V, 800–1200 MPa) and carbon-fibre composites are so common.
Examples: Fuselages, landing gear, turbine blades, and satellites. Applications where reliability is critical.
- Automotive: Cars need to manage crashes safely. High-strength steels (400–800 MPa) are tuned for crumple zones and reinforcements so they bend in controlled ways and absorb energy.
Examples: Crumple zones, suspension arms, chassis parts, and roll cages.
- Medical: Surgical tools and implants face different challenges. Some will be used just once while others will go through millions of cycles inside the body. Stainless steels (~200–300 MPa) and titanium alloys are go-to choices.
Examples: Hip and knee replacements, bone screws, dental implants, and surgical instruments that need to withstand repeated sterilisation.
- Industrial Equipment: Heavy-duty machines run constantly, often in harsh environments. Materials must be strong and durable, even at high temperatures.
Examples: Gears, shafts, cranes, pressure vessels, pipelines, and mining equipment, where failures mean huge costs and downtime.
FAQ
What’s the difference between yield strength and tensile strength?
expand_less expand_moreYield strength is the point where a material starts to bend or stretch permanently. Tensile strength is the maximum stress it can take before breaking. For metals, yield strength is usually about 60–90% of the tensile strength.
How is yield strength measured?
expand_less expand_moreIt’s usually measured with a tensile test. If the material doesn’t show a clear yield point, engineers often use the 0.2% offset method to define it.
Why does yield strength vary in 3D-printed parts?
expand_less expand_moreBecause 3D printing builds parts layer by layer, strength depends on orientation. Loads applied across layers can reduce yield strength by 20–40% since the bond between layers is weaker.
Can yield strength be changed after manufacturing?
expand_less expand_moreYes. Processes like heat treatment, work hardening, or surface treatments can make materials much stronger. Depending on the material, changes of 50–200% are possible.
How do temperature changes affect yield strength?
expand_less expand_moreMany metals lose noticeable strength as temperature rises. For example, steels can lose up to ~20% by 200°C. Plastics are even more sensitive, especially once they approach their glass transition temperature.
