Threaded Inserts with Heat Staking and Ultrasonic Welding

By Protolabs

Applications for threaded inserts in injection-molded parts abound. They are common features that show up in a range of industries and in a variety of parts—housings, casings, electronic enclosures, appliance knobs and dials, etc. The two methods we use at Protolabs for threaded inserts, if insert molding is not an option for your design, are heat staking and ultrasonic welding, injection molding processes by which a molded thermoplastic part is locally melted to allow the insertion of another part. Both options offer tightness, durability, and aesthetics for plastic parts.

Threaded Inserts

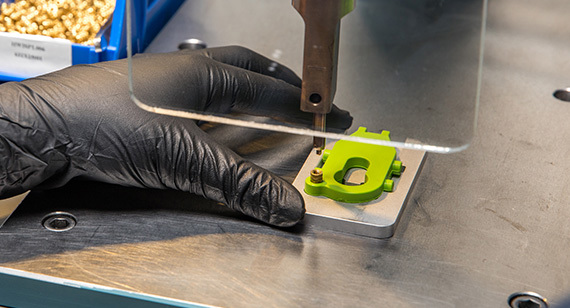

Heat staking, a process we use at Protolabs for threaded inserts, is commonly used in the manufacturing of appliances, automotive parts, and equipment in the telecom industry.

Heat staking is the process of heating threaded inserts and press fitting those inserts into part geometries, an application that relies on precise control and application of the temperature and pressure to cause the reforming of the plastic. Heat staking is commonly used in the manufacturing of appliances, automotive parts, and components and equipment for the telecom industry.

Ultrasonic welding is typically used for plastics. The process deploys high frequency ultrasonic acoustic vibrations in a localized area to press fit inserts into part geometries, creating a solid-state weld. You’ll see this process used for parts in medical devices, automotive parts, aerospace components, and electronic assemblies. We stock and install an assortment of commonly used standard inserts in UNF and metric sizes. Please note that we are currently unable to accept user-supplied custom inserts.

Inputs for Heat Staking, Ultrasonic Welding

The required inputs we would need from you in order for us to provide these threaded-insert services are:

  • a CAD/part link
  • a 2D drawing noting the insert type and location
  • an assembly CAD if possible
  • the part material
  • the quantity of parts requiring inserts.

Threaded inserts are part of a wide selection of finishing options for injection molding that we offer, which provide a number of benefits: strengthening parts, improving cosmetic appearance, providing customization, and so on. Beyond threaded inserts, these include: mold texturing, pad printing, laser engraving, and basic assembly. These finishing options add to our capabilities as a single-supplier manufacturer with in-house tooling and part production. You can use us from start to finish for your parts: from early development and prototyping, through on-demand production of end-use parts, and secondary options and finishing.

For additional help, feel free to contact us at 877-479-3680 or [email protected]. To get your next design project started today, simply upload a 3D CAD model for an interactive quote within hours.
