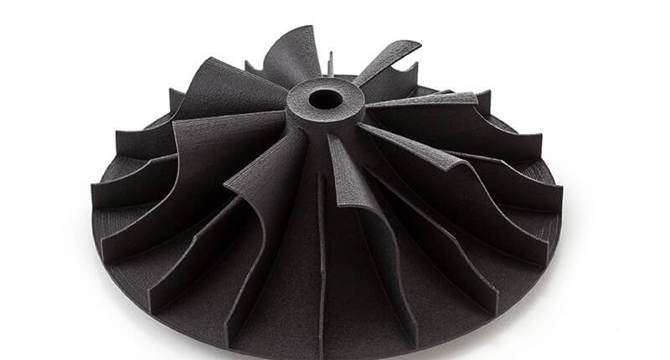

PA 12 40% Glass-Filled Black
A slightly less durable material that offers significant heat deflection.
Product Description
PA 12 40% Glass-Filled Black is a 40% glass-filled nylon. Final parts are dyed black. The biggest advantage offered by this material is the heat deflection temperature of 248°F when measured at 264 psi, ranking 2nd best after PA 12 Mineral-Filled.
Applications
Multi Jet Fusion’s PA 12 black is often used to build housings, enclosures, and fixtures, and can work well for snap fits and hinges.
Tolerances
For well-designed parts, tolerances of ±0.012 in. plus ±0.002 in./in. for each additional inch can typically be achieved. Note that tolerances may change depending on part geometry.
Key Product Benefits
- Near isotropic mechanical properties
- Water and air proof without additional treatment
Related Materials
- PA11 Black
- PA12 40% Glass-Filled Black
- PA12 Mineral-Filled (PA620-MF)
PA 12 40% Glass-Filled Black Properties
All of the figures contained on this data sheet are approximate and dependent on a number of factors, including but not limited to, machine and process parameters. The information provided is therefore not binding and not deemed to be certified
| Property | Test Method | Value |
|---|---|---|
| Color | - | Black |
| Sintered Density | ASTM D792 | 1.3 g/cm³ |
| E-Module (x-y plane) | ASTM D638, test speed 10mm/min | 2900 ± 400 MPa |
| E-Module (z plane) | ASTM D638, test speed 10mm/min | 3500 ± 275 MPa |
| Tensile strength (x-y plane) | ASTM D638, test speed 10mm/min | 27.5 ± 2 MPa |
| Tensile strength (z plane) | ASTM D638, test speed 10mm/min | 30 ± 2 MPa |
| Elongation at break (x-y plane) | ASTM D638, test speed 10mm/min | 8.5 ± 3% |
| Elongation at break (z plane) | ASTM D638, test speed 10mm/min | 6.8 ± 3% |
| Heat deflection temperature @ 0.46 MPa* | ASTM D648 | 175 ˚C |
| Heat deflection temperature @ 1.82 MPa* | ASTM D648 | 120 ˚C |
*From supplier data sheet
