Glass Transition Temperature of Polymers

There’s an important but often overlooked material consideration when designing parts for plastic injection molding. It’s called Tg, short for glass transition temperature. We’ll get into the science behind it all later, but for now, just know that there is a temperature where amorphous materials transition from a glassy/rigid state to a leathery/rubbery state.

What is Glass Transition Temperature (Tg)?

Glass transition temperature is the temperature at which an amorphous polymer changes from a hard/glassy state to a soft/leathery state, or vice versa. Tg is directly related to a material’s strength and capabilities in any given end-use application. Glass transition temperature is tied to a polymer’s mechanical properties. This includes its tensile strength, impact resistance, modulus of elasticity, and its operational temperature range, as you can see in figure 1.

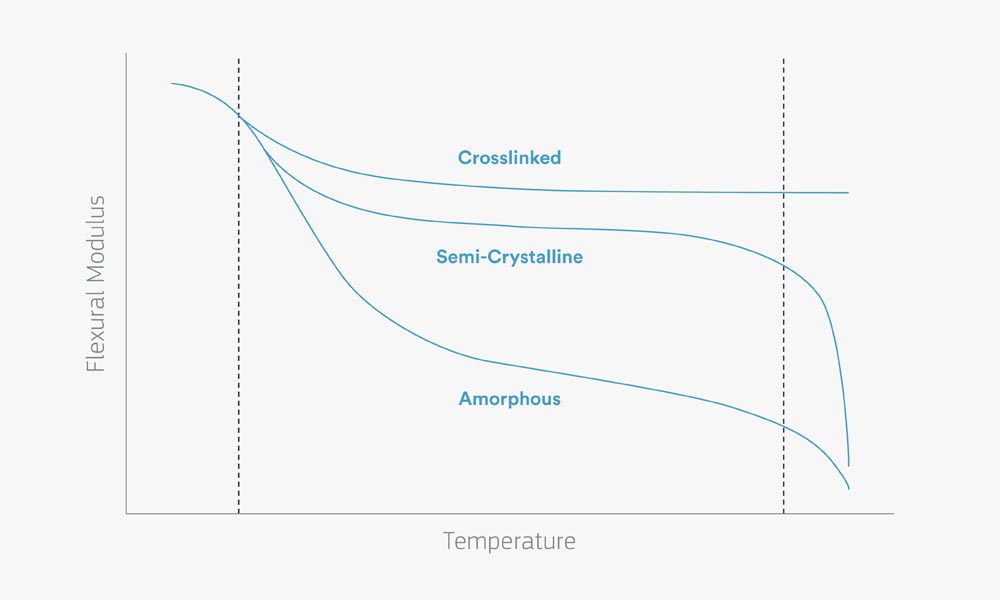

Figure 1: Flexural Modulus vs. Temperature

Amorphous vs. Semi-crystalline Polymers

Polymers fall into one of two classes: thermosets and thermoplastics. Thermoplastic polymers are then further divided into one of two camps: those that are amorphous such as polycarbonate (PC) and polystyrene (PS), and those that are semi-crystalline (polypropylene and acetal are two examples).

In order to take apart the watch on this, it’s necessary to revisit high school chemistry class. Don’t worry, though; it won’t take long. We’ll begin on the first day, when the teacher poses the question: what are polymers? The brainiac sitting up front who studies ancient languages for fun knows that “poly” and “mer” are the Greek words for “many parts” and therefore pipes up with “polymers are long chains of smaller molecules joined together through a process called polymerization, and whose molecular weight ranges from the hundreds to hundreds of thousands.” Congratulations.

Polymer Structure

Long Molecular Chains

But what’s molecular weight, anyway? More importantly, who cares? Anyone designing plastic parts should. Any polymer’s molecular weight determines the length of the “long chains” just mentioned and, therefore, its physical characteristics. For example, where a hydrogen molecule “weighs” just 1.01 g/mol (molar mass) and one of carbon weighs 12.01 g/mol, a single molecule of high-density polyethylene (HDPE)—which is nothing more than a linked series of these two molecules—can weigh in at 250,000 g/mol or more.

Whether it’s polyethylene terephthalate (PET) molecules that range from 8,000 to 31,000 g/mol or polystyrene (PS) molecules at a whopping 400,000 g/mol, these centipede-like chains of monomers—which are the building blocks of polymers—arrange themselves into either amorphous or semi-crystalline structures.
