How Does 3D Printing or Additive Manufacturing Work?

Learn about additive manufacturing technologies, industry applications, and benefits from prototyping to production

A good starting point for 3D printing is to look at it as a process in which parts are built by adding material to form an object as opposed to subtracting it as is the case with CNC machining. Some people like to call it by its more formal name: additive manufacturing (AM), especially when linked to industrial-grade quality and production quantities but to be honest, most people just use the term 3DP, and often, so do we.

But who came up with such a cool idea? At first it was the stuff of science fiction. Arthur C. Clarke, author, came up with the general premise behind 3D printing in 1964. It would be another 20 years before legit 3D printing came on the scene, thanks to Chuck Hull. He patented the stereolithography (SLA) process, which uses lasers to solidify layers of thermoset resin. That invention marked the true start of today's additive manufacturing. Seeing the potential for a growth industry, in 1986 Hull founded 3D Systems. A year later, the company released the SLA-1, the world’s first commercially available SLA printer.

One of the earliest uses of stereolithography was in rapid prototyping, where it was used to quickly create physical prototypes of new parts and products. This allowed designers and engineers to test their designs more quickly and cost-effectively than with traditional manufacturing methods.

Fused deposition modeling (FDM), which captured the hearts of desktop hobbyists worldwide, came along in 1988, the same year the first patent for selective laser sintering (SLS) was awarded. More on those and other processes later.

Timeline images

So, beyond the cool factor, what’s up with the love affair with 3D printing? Well, compared to traditional processes 3D printing has a lot going for it. It lets you:

  • build complex, organic geometries and internal features with limited effect on part cost
  • consolidate multi-component assemblies into a single part
  • avoid upfront tooling (mold) costs
  • speed production to get your parts fast

One fundamental advantage of 3D printing is that it allows for rapid iteration. You can get a “first draft” part one day, find something you’d like to tweak in the design, and have the new version of the part in just days. The second important advantage is that you have remarkable (though not complete) design flexibility. Medical and aerospace companies, especially, like to leverage these two benefits.

How Does 3D Printing Work?

As with manufacturing any part, it starts with a designer using a CAD application to create a 3D part model. Once the part has been quoted in our system and adjustments have been made to ensure manufacturability, that digital file can be sent to a printer to be built, layer-by-layer. Depending on the process you choose, it might start as a bed of powder or resin, or possibly layers of melted material, much like an inkjet printer. Chemicals, UV light, or high-powered lasers will fuse the layers until the part is complete. There’s more to it than that, and we’ll talk about the individual processes in a later section.


Common 3D Printing Applications

It hasn’t been all that long since 3D printing became a go-to process for many industries. Now, even the largest companies rely on additive manufacturing to create unique parts for the products.

Blue Icon


Prototyping of components is commonplace to speed iteration, and test and validate processes, but more and more printed parts are end-use, and heading into space

Blue Icon


Making parts faster means bringing cutting-edge technologies to cars, trucks, and buses and reducing model life cycles

Blue Icon


Consumers crave well-designed products that enhance convenience with 3D printing lending a development hand to macrotrends like mass customization

Blue icon


It’s no exaggeration to say that rapid iteration in the medical industry saves lives with 3D printing a reliable method to get products and devices past gate approvals and closer to market

Additive manufacturing can be leveraged for both rapid prototyping and production in these and other large industry sectors. Examples of typical parts, include:

  • engine components
  • form and fit prototypes
  • fuel injectors
  • heat exchangers and heat sinks
  • housings and enclosures
  • jigs and fixtures
  • medical devices
  • snap fits
  • surgical instrumentation
Computer with digital part

3D Printing Toolkit

Get in-depth design advice to optimize 3D-printed parts. Designing with additive manufacturing in mind can accelerate production time and reduce overall cost.

Check Out The Toolkit

Emerging Trends in 3D Printing

Economic Growth

The 3D printing industry is growing by leaps and bounds. A 2022 report from our team at Hubs indicated that the 3D printing market will triple in size over the next four years, reaching a value of $44.5 billion in 2026. If you aren’t using 3DP now to manufacture your parts, you certainly might soon. Parallel to this growth are advancements in printer quality and standardization of additive processes, requirements that stem from the needs of two major industries: aerospace and medical. These often pave the way for advances in the automotive industry and industrial equipment.


We’re seeing continued progress in AM material handling and recycling best practices, which includes the materials required for post-processing of 3DP parts. As additive’s share of the production parts market expands, the number of sustainable materials will follow suit, but so will AM workflow processes that lead to responsible production and utilization.

Advancement in AM Tech

Industrial printers have become faster and more precise in their builds. Also, there are many more finishing options available that range from material strengthening to smoothing surface roughness and aesthetics. All these make 3D printing a reasonable solution for manufacturing prototypes, as well as end-use and production-quantity parts, too.

Metal Printing

One of the huge growth areas has been in metal 3D printing. With parts that are near fully dense and have all the geometric advantages 3DP offers, it makes a lot of sense. Moreover, printers like the GE Additive X Line 2000R can print parts as large as 31.5 in. x 15.7 in. x 19.7 in. (800mm x 400 mm x 600mm)—about the size of a watermelon—which makes combining multiple metal parts into one that much more realistic an option.

Additive Education

STEM programs and universities are helping train the next generation of AM practitioners. They are focusing on the design principles and capabilities that are unique to 3D printing and have potential to drive greater manufacturing and product development efficiencies. So, the most influential trend driving additive production is the increased comfort engineers have with 3D printing as a true industrial manufacturing process. Roughly a decade ago, 3D printing started to become a mainstream process for prototyping applications and now many engineers have access to a printer in their office or lab and use it on a frequent basis.

Types of 3D Printing and Use Cases

Having trouble deciding which printing technology makes the most sense for your parts? See below to guide you to the answer.

Direct Metal Laser Sintering (DMLS)

The DMLS machine begins sintering each layer—first the support structures to the base plate, then the part itself—with a laser aimed onto a bed of metallic powder. After a cross-section layer of powder is micro-welded, the build platform shifts down and a recoater blade moves across the platform to deposit the next layer of powder into an inert build chamber. The process is repeated layer by layer until the build is complete.

Learn More →     |     Read Design Tip →

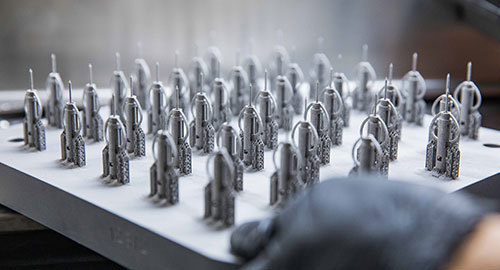

Silver 3D printed parts


  • Suitable for end-use applications
  • High resolution parts
  • Create complex geometries with high performance metals


  • Often requires extensive post-processing and heat treatments
  • Slower build process
  • Expensive process

Use Cases

  • Prototyping in production-grade materials
  • Complex geometries
  • Functional, end-use parts
  • Reducing metal components in an assembly

Stereolithography (SLA)

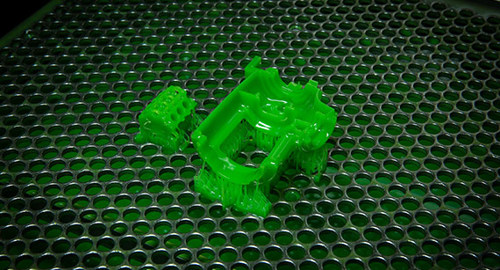

The SLA machine begins drawing the layers of the support structures, followed by the part itself, with an ultraviolet laser aimed onto the surface of a liquid thermoset resin. After a layer is imaged on the resin surface, the build platform shifts down and a recoating bar moves across the platform to apply the next layer of resin. The process is repeated layer by layer until the build is complete.

Learn More →    |    Read Design Tip →


  • Smooth surface finish
  • Detailed feature resolution
  • Materials with high heat deflection


  • Colors and materials can weaken over time with UV exposure
  • Limited suitability for functional testing
  • Diminished strength along the Z axis

Use Cases

  • Features as small as 0.002 in. (0.05mm)
  • Tight tolerance requirements
  • Need smooth surface finishes

Selective Laser Sintering (SLS)

The SLS machine begins sintering each layer of part geometry into a heated bed of nylon-based powder. After each layer is fused, a roller moves across the bed to distribute the next layer of powder. The process is repeated layer by layer until the build is complete.

Learn More →     |     Read Design Tip →

SLS Process


  • Stiff and durable parts
  • Isotropic mechanical properties
  • Materials with chemical resistance


  • Textured surface finish
  • Wider tolerances
  • Warpage potential on large parts

Use Cases

  • Jigs and fixtures
  • Housings
  • Snap fits and living hinges

Multi Jet Fusion (MJF)

Multi Jet Fusion uses an inkjet array to selectively apply fusing and detailing agents across a bed of nylon powder, which are then fused by heating elements into a solid layer. After each layer, powder is distributed on top of the bed and the process repeats until the part is complete.

Learn More →     |     Read Design Tip →

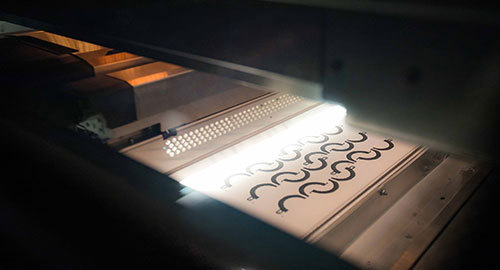

Multijet process


  • Stiff and durable parts
  • Economical
  • Materials with heat deflection properties


  • Textured surface finish
  • Inconsistent salt and pepper appearance when undyed
  • Warpage potential

Use Cases

  • Parts requiring consistent isotropic mechanical properties
  • Functional prototypes and end-use parts
  • Complex and organic geometries with fine features

Carbon Digital Light Synthesis (DLS)

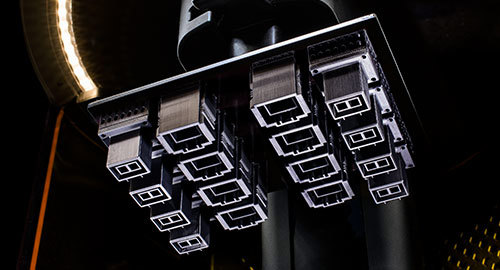

Carbon DLS uses CLIP (continuous liquid interface production) technology to produce parts through a photochemical process that balances light and oxygen. It works by projecting light through an oxygen-permeable window into a reservoir of UV-curable resin. As a sequence of UV images are projected, the part solidifies, and the build platform rises.

Learn More →     |    Read Design Tip →


  • Fast build process
  • Durable parts


  • Thickness and warpage limitations
  • Smaller platform
  • Two-part materials require additional heat treatment steps

Use Cases

  • Complex designs that are challenging to mold
  • Need for isotropic mechanical properties and smooth surface finish
  • Production parts in materials comparable to abs or polycarbonate
  • Durable components for end use

PolyJet (PJET)

The PolyJet process begins by spraying small droplets of liquid photopolymers in layers that are instantly UV cured. Voxels (three-dimensional pixels) are strategically placed during the build, which allow for the combination of both flexible and rigid photopolymers know as digital materials. Each voxel has a vertical thickness equal to the layer thickness of 30 microns. The fine layers of digital materials accumulate on the build platform to create accurate 3D-printed parts.

Learn More →     |    Read Design Tip →

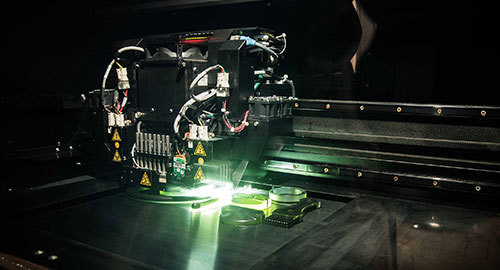

Polyjet machine


  • Moderate price
  • Prototype over-molded parts
  • Range of durometer options


  • Limited suitability for functional testing
  • Limited strength
  • Colors and materials can weaken over time with UV exposure

Use Cases

  • Prototyping designs for over-molding or silicone rubber parts
  • Combining two colors or durometers into a single part
  • Simulating elastomers or flexible parts

Fused Deposition Modeling (FDM)

A thermoplastic filament or spool of plastic is heated to the melting point. The hot, liquid plastic emerges through a nozzle to create a thin, single layer along the X and Y axes on the build platform. The layer cools and hardens quickly. As each layer is completed, the platform is lowered and additional molten plastic is deposited, growing the part vertically (along the Z axis).

Learn More →

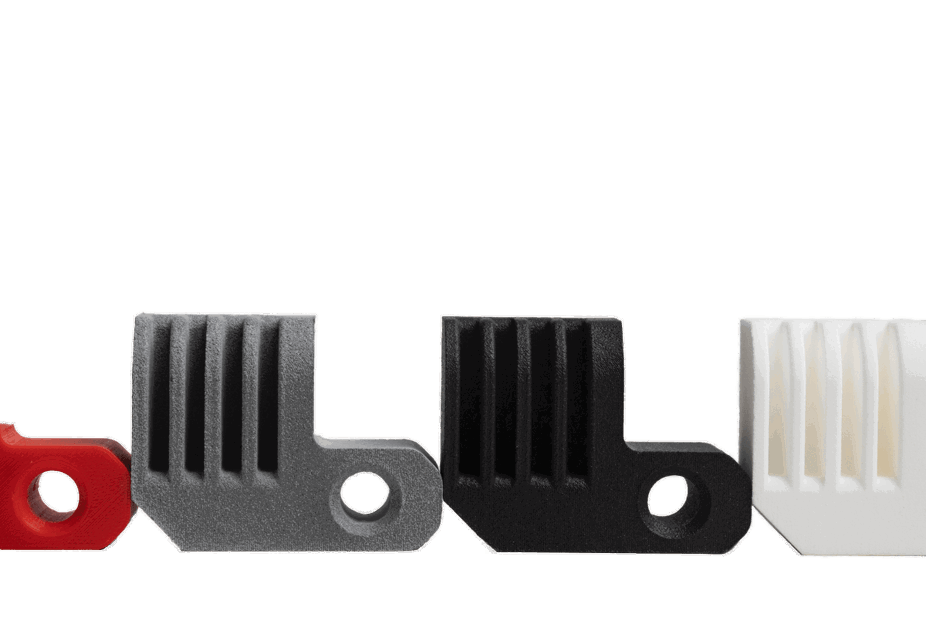

Plastic parts


  • Can build with desktop equipment
  • Rapid prototyping solution
  • Moderate strength


  • Rippled surface texture
  • Limited suitability for functional testing
  • Diminished strength along the Z axis

Use Cases

  • Makes prototypes for testing fit and form
  • Parts functional in high heat, chemical exposure, or mechanical stress

Protolabs offers all of the above processes, except for FDM. Our digital network of manufacturing partners at Hubs offers desktop and industrial FDM printing with part sizes up to 19.68 in. x 19.68 in. x 19.68 in. (500mm x 500mm x 500mm).

Common 3D Printing Terms

expand_less expand_more

With machining, material is cut away (or subtracted) from blocks, bars, or rods to create a part. With additive manufacturing—and specifically 3D printing—materials are added onto one another to create a part.

expand_less expand_more

Essentially the part you are manufacturing while it’s in the process of being made.

Build chamber
expand_less expand_more

The area in which 3D-printed parts are manufactured. To avoid contamination during the build, it is typically sealed and sometimes injected with an inert gas to remove debris.

Build plate
expand_less expand_more

This is the physical plate on which the part is built. It can also be referred to as the build platform or the print bed.

expand_less expand_more

An acronym for design for additive manufacturing. It encompasses rules and best practices to achieve functional parts via additive processes, such as 3D printing.

expand_less expand_more

The material inside your part that helps it maintain its structure.

Layer thickness
expand_less expand_more

The height of each individual layer of material that is added to a 3D print during the printing process. It is one of the primary factors that affects the quality and resolution of the final print.

expand_less expand_more

Part orientation refers to how parts are digitally placed in the 3D printer during the build. Orientation selection affects support structure design, surface finish quality, part strength, and build time. When printing, the part height is defined as the Z-axis. The X- and Y- axes serve as the boundary axes in line with the build plate.

expand_less expand_more

Post-processing is a broad term referring to any of the work done on 3D-printed parts once the printer signals a build is complete. This can include support structure removal, powder removal, sanding, blasting, heat treatments, and other secondary operations.

expand_less expand_more

This is sometimes referred to as vertical layer height, Z height, or layer thickness. The higher the resolution, the smaller the layer thickness. It is generally measured in microns.

STL file
expand_less expand_more

This file type is used for 3D printing. It describes the surface of the part by breaking it into a collection of triangles. The STL file lists the location of each point of every triangle as well as which side of the triangle faces outwards. Learn more here.

Support structures
expand_less expand_more

Support structures are required in many 3D printing processes to achieve printability. They are a scaffolding system that ensures the part can build layer-by-layer without experiencing major defects. They also serve as a medium to adhere the part to the build plate during printing. Design of support structure systems is key to achieving a quality part. Some of the most labor-intensive work around 3D-printed parts involves removing support structure material.

expand_less expand_more

An undesirable distortion caused by differential cooling of printed layers or heaviness of material with insufficient support structure.

Defects and How to Mitigate Them in Your Designs

The best way to avoid problems with 3D-printed parts is to follow DFM guidelines closely. Here are a few things to watch out for in your designs:

Avoid Large Overhangs

Large overhangs can be an issue in 3D printing because they require support structures to be printed underneath them, which can be time-consuming, increase material consumption, and lead to poor surface quality on the bottom of the overhang. It’s especially a problem with DMLS parts.

Eliminate Thin Walls

Thin walls may not have enough strength to withstand forces or stresses during use and may deform or break easily. Potentially, they can cause warp, or layers may separate during printing. You may end up with a rough surface finish due to poor bonding between layers and may even have difficulties printing a part if walls are too thin.

Watch Out for Warpage

Warpage in 3D-printed parts is a common issue that can be caused by a variety of factors, including the type of material being used, the design of the part, and the conditions under which the part is printed. You may need to add supports or use thicker walls. Another solution is to add a lattice structure to keep large, flat areas from sagging. One of the best ways to avoid warpage is to choose an optimal printing orientation to ensure your part can support itself with minimal need for supports. Finally, adding more material (sometimes called a brim or raft) to the bottom of a part can provide additional adhesion to the build plate and reduce the likelihood of warpage.

Check out this blog post so you can avoid some of the biggest 3DP design mistakes.

Vector graphic

When designing for DMLS, be cautious about overhangs—abrupt changes in a part’s geometry. As seen in this example, if the next layer is larger than the previous layer, it will create an overhang. DMLS is fairly limited in its support of overhangs.

Vector graphic

In this illustration, the blue color represents micro resolution (MR), green is high resolution (HR), and gray is normal resolution (NR). Also, the minimum channel and minimum Z dimensions apply to both NR and HR.

Post-Processing for 3D Printing

Looking to boost the strength, clarity, or appearance of your 3D-printed parts? Choose from microfluidic and micro-resolution materials, metal plating, secondary machining, and custom finishes like painting, clear coating, and decaling.

Surface Finish Options

Unfinished Dots, or standing "nibs," remain evident on the bottom of the part from the support structure remnants.
Natural Supported surfaces are sanded down to eliminate the support nibs.
Standard Supported surfaces are sanded, and the entire part is finely blasted for a consistent look. Note that the layers are still present.
Custom Soft-touch paint, clear part finishing, painting, masking, color matching, decals/graphic, and texture finishes are available.

Clear 3D printed part

An unfinished ABS-like part that was 3D-printed with SLA.

A Round and Silver 3D Printed part

A metal part with standard finish that was 3D-printed with DMLS.

Custom Finish Options
Clear Coat Clear cosmetic finish that can be applied to ABS-like Translucent/Clear (WaterShed XC 11122) and PC-like Translucent/Clear (Accura 60) materials.
Painting After smoothing the part with sanding and polishing, parts can be painted with automotive-grade paint. Provide a pantone color with your quote request. We also offer soft-touch painting.
Plating Electroless nickel plating can be used to achieve parts that are similar to cast aluminum or magnesium.
Dyeing Dyeing is another method for adding color to 3D prints. This is faster option with a limited color selection, so is a more cost-effective choice than painting.
Decaling Decaling can be used to add a logo or other graphics to boost cosmetics or function.
Polishing We can polish parts to a mirror-like finish. If this is a requirement, we ask that you provide either a drawing or image that indicates your finish expectations.
Heat Treatment Harden and strengthen metal 3D prints with multiple heat treatment options: NADCAP heat treatment, hot isostatic pressing (HIP), solution annealing, and aging.
Machining Machine metal 3D prints to achieve exceptional surface finish quality or meet tight tolerances.
Vapor Smoothing Used on select nylon parts made using the SLS or MJF printing processes. A chemical vapor significantly reduces surface roughness.

Round and clear 3D printed part

An ABS-like part with custom clear coat that was 3D-printed with SLA.

A Round and Silver 3D Printed part

A metal part with high polish that was 3D-printed with DMLS.

So, whether you’re looking for prototypes or end-use production parts, additive manufacturing has a lot going for it. From geometric flexibility in a variety of materials to rapid iteration that gets you high-quality parts within just days, our various 3D printing processes provide you with what you need to get the job done. If you have any questions regarding your quote or design, talk with our applications engineers to help guide you through the process. We look forward to working with you on your next project!

3D Printing Resources

Where to Get 3D Printing Files

There’s a thriving market for free 3DP CAD files. Here are just some of the places people look to find something they might be able to work with:

Software for 3D Printing Design

There are quite a few options available to you when it comes to choosing a computer-aided design (CAD) program or additional support software. Here are just a few:

There are even some powerful free CAD programs you can try if you’re just starting out.

Accepted CAD Files for 3D Printing

No matter what program you choose to work with, note that we accept CAD in the following file formats:

  • MESH (.stl)
  • STEP (.stp/step)
  • SOLIDWORKS (.sldprt)
  • IGES (.igs/.iges)
